Portable Cranes
The RK cranes can be disassembled and reassembled by 3 workers in 45 min, and transported to another level of a construction site by normal hoist. No need for large mobile cranes which block up roads, and easy to install in areas of buildings, where there is no access for mobile cranes.
Moreover, the crane does a unique job in areas where access is difficult, while it can be carried around easily and takes up little space when assembled. The portable crane is a truly portable, fully hydraulic crane.
This type of cranes is currently available in two versions, RK11 and RK22, with several options, such as tracks, fly jib, manual boom sections, cabin and remote control
Ceptorn Portable Roof Top Crane RK11-311 with hydraulic boom.
max lift of 4.535kg @ 1.83m & 600kg @ 10,42m
max lift of 10,000lb @ 6ft & 1,320lb @ 34.2ft
380m (1245ft) wire rope on drum
Other loadcharts available on request.

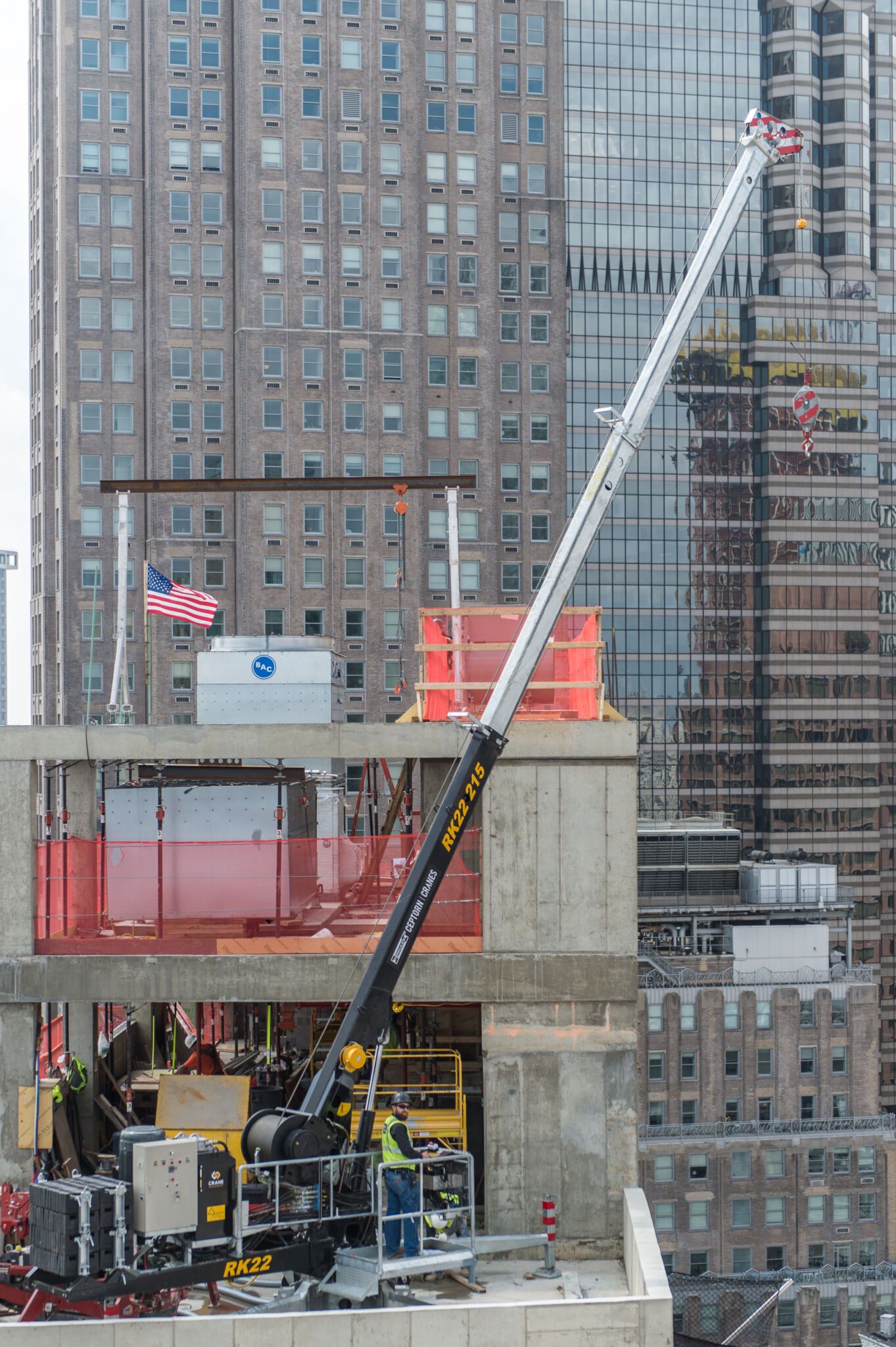

Ceptorn Portable Roof Top Crane RK22-215 with hydraulic boom.
max lift of 5.440kg @ 2.74m & 408kg @ 15m
max lift of 12,000lb @ 9ft & 900lb @ 49,2ft
609m (2000ft) wire rope on drum
Other loadcharts available on request.
Contact Ceptorn Cranes ApS sales team for further information through the link below.
